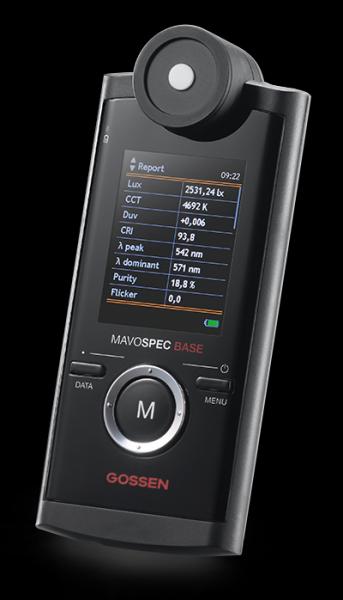

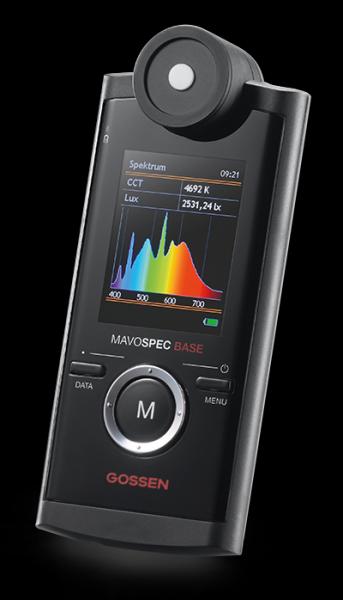

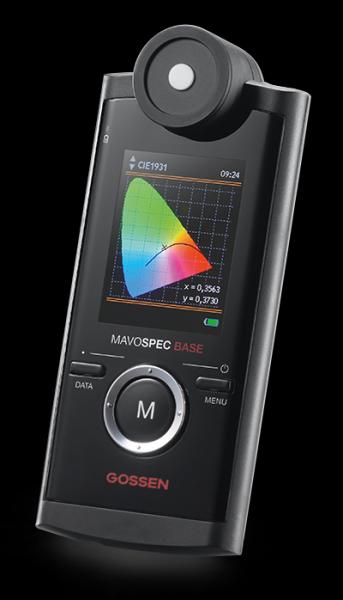

- Spectrometer
- model no. : Mavospec Base / Lite
- Desc. :
GOSSEN
- Application :
Indoor lighting, sun light, light booth, tunnel lighting, effect of color light to animals or plants, LCD projector, LED, fluorescent tube, light bulb
- Feature :
To measure light intensity with lux, color with xy, color temperature with K, CRI, flicker & spectrum, easy to use, compact, data stored in micro SD card with CSV format, suitable for LED lighting
-
-
Standard compliance: DIN 5032 part 7 class B Sensor: CMOS image sensor (256 pixels) Wavelength range: 380 ~ 780 nm Physical resolution: ~1.72 nm Optical resolution (FWHM): <=15 nm (typically 12 nm) Measuring range: 10 ~ 100,000 lux; 1600 ~ 50000 K Measuring function:
Illuminance : lux, fcd; color : xy, uv, u'v'; correlated color temperature : K, Δuv;
CRI : Ra, Re, R1 ~ R15; spectrum;
peak wavelength : nm; dominant wavelength : nm; purity : %;
PPFD : µmol/m2s; GAI; TM-30-15; TLCI;
irradiance : W/m2; luminous efficacy of radiation : lm/W;
flicker index; flicker %, flicker Hz;
lightscope: IEEE 1789 rating
(functions in green are available for Mavospec Base only)
Accuracy: lux : ±3% of displayed value;
K : ±2%; CRI : ±1.5%; TM30 : ±1.5%; flicker : ±1.5%(standard 2856 K light source measured at 1000 lux)
Data memory: 500000 data in 4 GB micro SDHC card with CSV format Software supplied: MS Excel template files : 6 report formats; data logger function;
spectrum graph; CIE xy, u'v' graphs
Power source: Rechargeable lithium ion battery or USB power bus Dimensions: 139 x 60 x 30 mm Weight: 150 g
