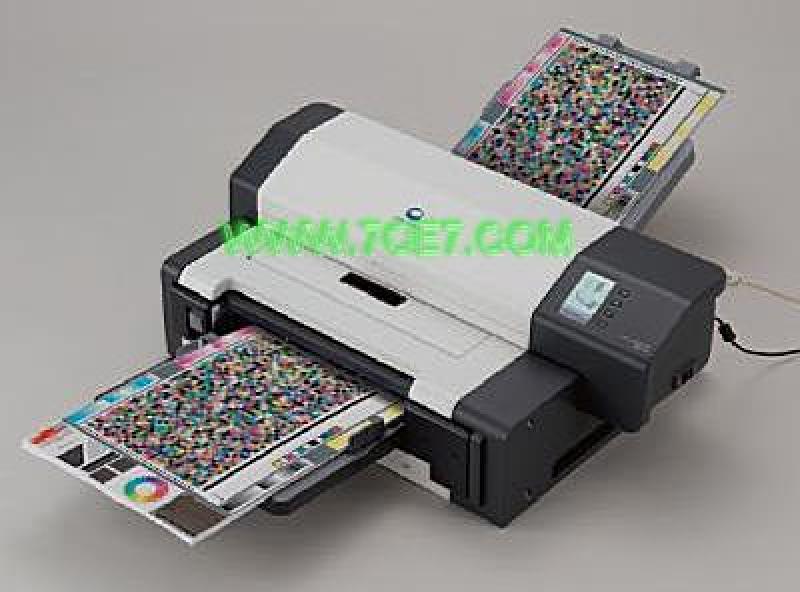

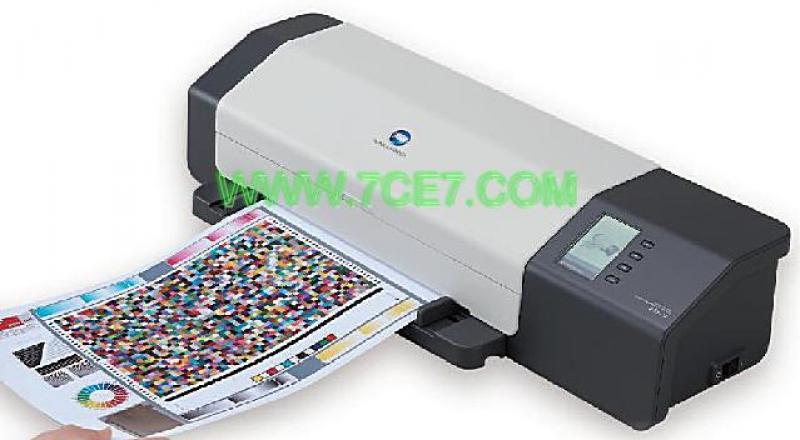

1. Auto Scan Spectrophotometer
      2. model no. : FD-9


      3. Desc. :

      4. KONICA MINOLTA



      5. Application :

      6. To measure color & dot density of many printing patches at once in order to adjust printers' output



      7. Feature :

      8. To measure color & density of many printing patches continuously, fast, save manpower, data output to PC, compliant to ISO 13655 conditions : M0, M1, M2



  • Model: FD-9
    Spectral device: Concave grating
    Wavelength range: 380 nm ~ 730 nm
    Wavelength pitch: 10 nm
    Measuring range: Reflectance : 0 ~ 150%
    Light source: LED
    Measuring area: Ø3 mm
    Repeatability:

    Colorimetric : within ΔE00 0.05

    (based on white calibration plate is measured

    30 times at 10s intervals)

    Measuring

    conditions:

    45° illumination; 0˚ viewing angle;

    C, D50, ID50, D65, ID65, F2, F6, F7, F8, F9, F10, F11, F12

    standard illuminants, user defined light source;

    2˚ & 10˚ standard observer; ISO 13655 M0, M1, M2; white backing

    Measuring

    functions:

    CIE Lab, CIE Lch, XYZ, density, spectral reflectance%, patch color
    Density: ISO Status T, E, A, I, DIN 16536
    Measurable charts:

    Paper width : 45 ~ 330 mm; paper length : 170 ~ 1500 mm;

    paper thickness : 0.05 ~ 0.45 mm; minimum patch size : 6 x 6 mm
    Measurement time:

    About 4 minutes per 1500 patches

    (A3 chart, 47 rows, 32 columns)
    Digital output: USB 2.0; 10BaseT; 100BaseTX
    Power source: AC adapter
    Dimensions:

    716 x 251 x 159 mm (body only)
    Weight:

    About 10.5 kg (body only)
