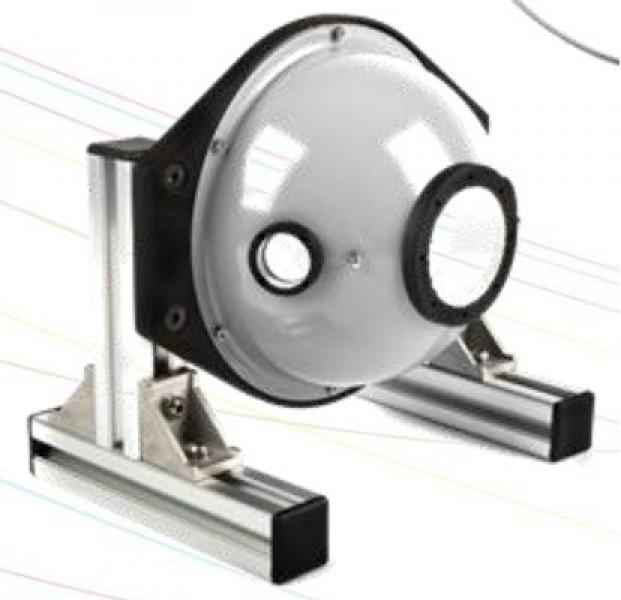

1. Integrating Sphere System
      2. model no. : AIS


        3.
      3. Application :

      4. Quality inspection of single LEDs & small LED modules according to CIE 127



      5. Feature :

      6. To measure light intensity (luminous flux) with lumen & other colorimetric data, accurate, easy to use, compact, PC controlled



  • Model: AIS75; AIS150; AIS250
    Sensor: Holographic grating
    Spectral range: 380 ~ 780 nm; 360 ~ 830 nm; 190 ~ 435 nm; 200 ~ 1100 nm
    Optical resolution (FWHM):

    2.3 nm; 2.3 nm; 0.7 nm; 1.7 nm
    Wavelength accuracy: ±0.5 nm
    Stray light: <0.2%
    Measurement data:
    lumen; xy; CCT; CRI (Ra); peak wavelength; dominant wavelength;
    Accuracy:

    lumen : ±4%; ±4%; ±5%; ±4%;

    xy : ±0.002; ±0.002; ±0.003; ±0.002
    Digital output: USB; RS232; ethernet; trigger in/out
    Power source: AC adapter
    Dimensions:

    Integrating sphere : 75 / 150 / 250 mm in diameter;

    spectrometer : 95 x 81 x 61 mm
    Weight: >650 g
