1. IR Thermal Camera
      2. model no. : DT-980


      3. Desc. :

      4. CEM



      5. Application :

      6. To measure temperature, suitable for distant, moving & harmful objects, such as electrical wire, control board, etc.



      7. Feature :

      8. Easy to use, compact, to measure temperature without directly contact objects, to show large area of surface temperature distribution by LCD image display



  • Sensor: Uncooled microbolometer focal plane array
    Thermal sensitivity / NETD: <=0.1°C@30°C / 100mK
    Temperature unit: °C or °F (switchable)
    Minimum measuring distance: 0.5 m

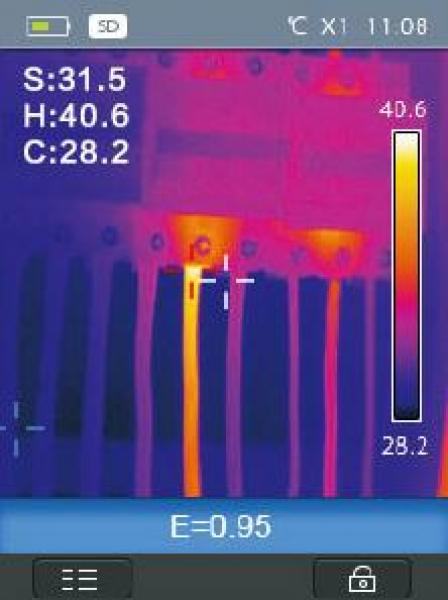

    Thermal image display: 2.8 inch LCD monitor; 80 x 80 pixels
    Measuring range: -20 ~ 150°C, -4 ~ 302°F; 0 ~ 350°C, 32 ~ 662°F

    Accuracy:

    		 Within ±2˚C or ±2% of displayed value
    Display resolution: 1 digit after decimal point
    Emissivity range: 0.01 ~ 1.00

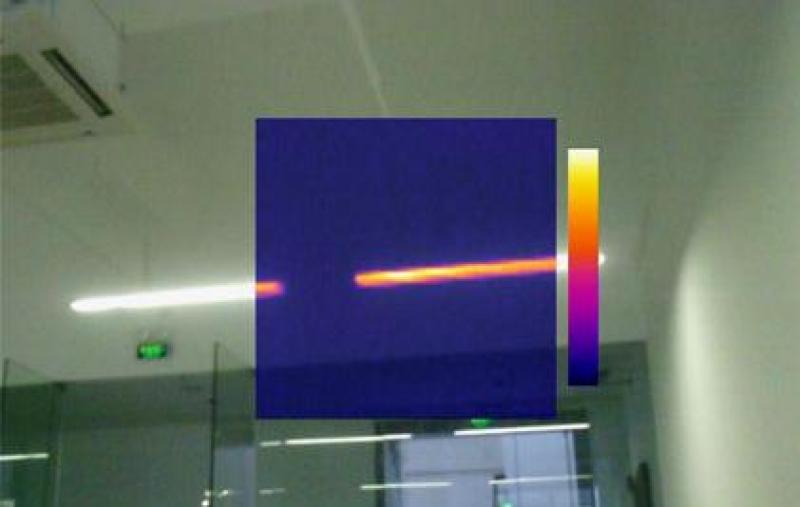

    Display function: IR image, visual image, picture in picture
    Data storage:

    Store in micro-SD card (8GB, up to 32 GB)

    as JPEG / MPEG4 format
    Digital output:  USB by software : IR Meter or app : Thermview
    IP rating: IP 65
    Power source:  Lithium ion rechargeable battery or AC adapter
    Dimensions: 224 x 77 x 96 mm
    Weight: 500 g (with battery)
