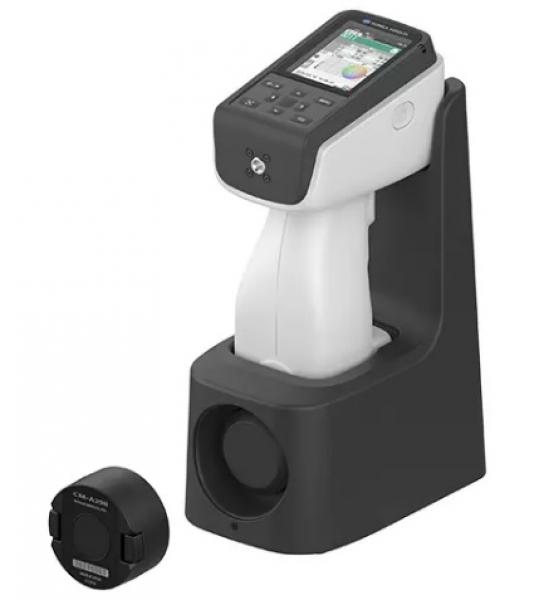

1. Spectrophotometer
      2. model no. : CM-17d / 16d


      3. Desc. :

      4. KONICA MINOLTA



      5. Application :

      6. To measure color of plastic, paint, printing, textile, metal, food, skin, etc.



      7. Feature :

      8. To measure color of any opaque material, wide range, accurate, great performance portable model, provide Chinese menu display, data output to PC, data compatible with old models CM-700d / 600d



  • Model: CM-17d; CM-16d
    Sensor: Silicon photo diode array (dual 32 elements)
    Spectral device: Diffraction grating
    Integrating sphere size: Ø40 mm
    Wavelength range: 400 nm ~ 700 nm
    Wavelength pitch: 10 nm
    Measuring range: Reflectance : 0 ~ 175%; resolution︰ 0.01%
    Light source: pulsed xenon lamps
    Measuring area: Ø8 mm & Ø3 mm; Ø8 mm
    Repeatability:

    Within ΔE*ab 0.02; within ΔE*ab 0.04

    (based on white calibration plate is measured 30 times at 5s intervals)

    Measuring

    conditions:

    Diffuse illumination; 8˚ viewing angle; SCI & SCE;

    A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65,

    LED-B1~5, LED-BH1, LED-RGB1, LED-V1, LED-V2 standard illuminants;

    2˚ & 10˚ standard observer

    Measuring

    function:

    CIE Lab, CIE Lch, Yxy, XYZ, Hunter Lab, metamerism index,

    Munsell (C illuminant only), ΔE*ab, CMC (l:c), CIEΔE1994,

    CIEΔE2000, Hunter ΔE, DIN99, FMC-2,

    WI ASTM E313-73 (C illuminant only),

    WI ASTM E313-98 (C illuminant only), WI+tint CIE,

    YI ASTM D1925 (C illuminant only),

    YI ASTM E313-73 (C illuminant only), ISO brightness (ISO 2470),

    grey scale, blackness My, jetness Mc, undertone dM
    Data memory:  Target : 1000 sets; sample : 5000 sets
    Digital output:  USB & Bluetooth
    Power source:  Rechargeable Li-ion battery or USB power
    Dimensions:  230 x 128 x 79 mm
    Weight:  About 700 g; 660 g (with Li-ion battery)
