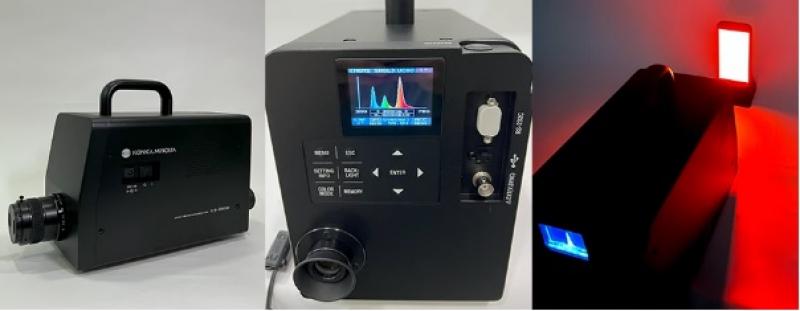

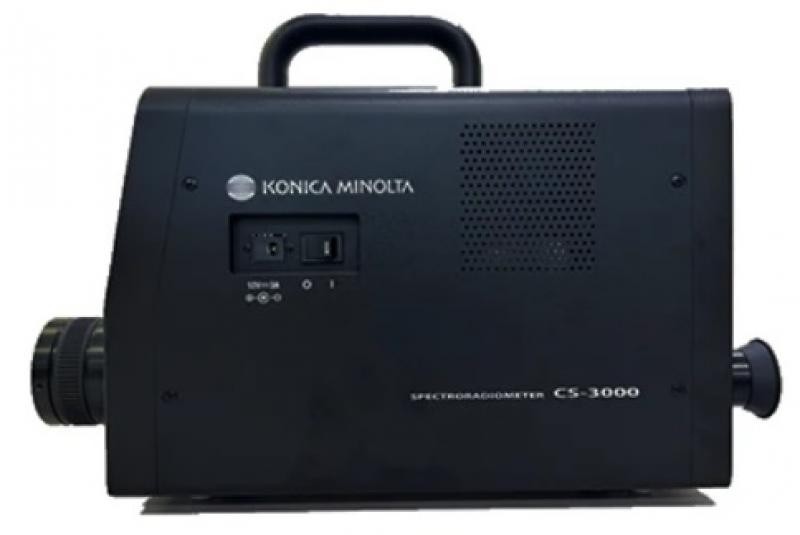

1. Spectroradiometer
      2. model no. : CS-3000HDR / 3000 / 2000+


      3. Desc. :

      4. KONICA MINOLTA

        new model in 2023



      5. Application :

      6. Light box, traffic light, effect of color light to animals or plants, LCD panel, LED panel, vehicle lamp, digital cinema screen, light bulb, fluorescent tube, calibration reference



      7. Feature :

      8. To measure light intensity with cd/m2，color with xy, CIE 170-2，color temperature with K，dominant wavelength，spectrum, contain diffraction grating，wide range，accurate，measure very low luminance，data output to PC





  • Model: CS-3000HDR; CS-3000; CS-2000+
    Wavelength range: 380 - 780 nm
    Wavelength precision: ±0.3 nm
    Focusing distance: 350 mm to infinity

    Minimum

    measuring area:

    Ø5 mm (measuring angle 1°); Ø1 mm (measuring angle 0.2°); Ø0.5 mm (measuring angle 0.1°);

    Ø0.1 mm (measuring angle 0.1° + close-up lens)

    Measurement

    range:

    0.0001 - 100,000 cd/m2; 0.0005 - 5,000 cd/m2; 0.003 - 5,000 cd/m2

    (measuring angle 1°);

    0.0025 - 2,500,000 cd/m2; 0.0125 - 125,000 cd/m2; 0.075 - 125,000 cd/m2

    (measuring angle 0.2°);

    0.01 - 10,000,000 cd/m2; 0.05 - 500,000 cd/m2; 0.3 - 500,000 cd/m2

    (measuring angle 0.1°)
    Accuracy:

    cd/m2 :±5 % (0.0001~0.0004 cd/m2) & ±2 % (>0.0004 cd/m2);  ±2 %; ±2 %


    xy : ±0.002 (>=0.001 cd/m2); xy : ±0.002 (>=0.001 cd/m2); xy : ±0.003 (>=0.003 cd/m2) & ±0.002 (>=0.005 cd/m2);

    x : ±0.0015 y : ±0.001 (>=0.05 cd/m2); x : ±0.0015 y : ±0.001 (>=0.05 cd/m2); x : ±0.0015 y : ±0.001 (>=0.05 cd/m2) (measuring angle 1°);

    xy : ±0.002 (>=0.025 cd/m2); xy : ±0.002 (>=0.025 cd/m2); xy : ±0.003 (>=0.075 cd/m2) & ±0.002 (>=0.125 cd/m2);

    x : ±0.0015 y : ±0.001 (>=1.25 cd/m2); x : ±0.0015 y : ±0.001 (>=1.25 cd/m2); x : ±0.0015 y : ±0.001 (>=1.25 cd/m2) (measuring angle 0.2°);

    xy : ±0.002 (>=0.1 cd/m2); xy : ±0.002 (>=0.1 cd/m2); xy : ±0.003 (>=0.3 cd/m2) & ±0.002 (>=0.5 cd/m2);

    x : ±0.0015 y : ±0.001 (>=5 cd/m2); x : ±0.0015 y : ±0.001 (>=5 cd/m2); x : ±0.0015 y : ±0.001 (>=5 cd/m2) (measuring angle 0.1°);



    (Based on ambient temperature is 23±2°C & relative humidity is 65% or less for illuminant A)
    Measurement method: Spectral method, grating + linear photo diode array
    Measuring angle: 1°, 0.2°, 0.1° (switchable)

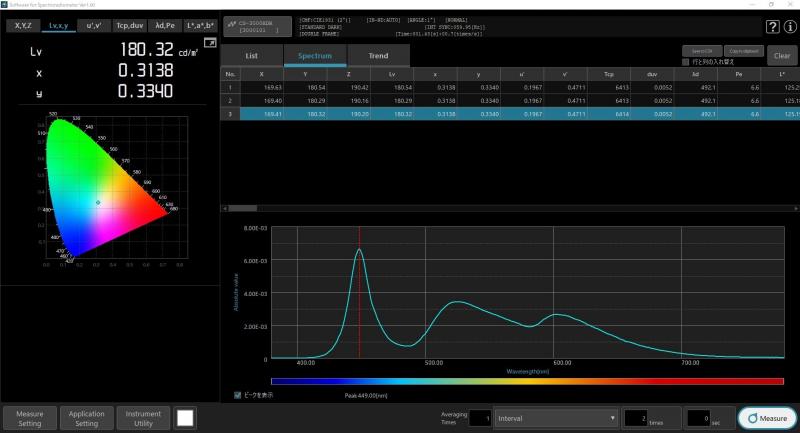

    Measuring function:

    Luminance : cd/m2, fL; tristimulus values : XYZ;

    color : xy, u'v', CIE 170-2; correlated color temperature : K, Δuv;

    dominant wavelength : nm; excitation purity : %; spectral graph
    Digital output: USB
    Power source: AC adapter
    Dimensions: Main body : 158 x 262 x 392 mm
    Weight: 7 kg
