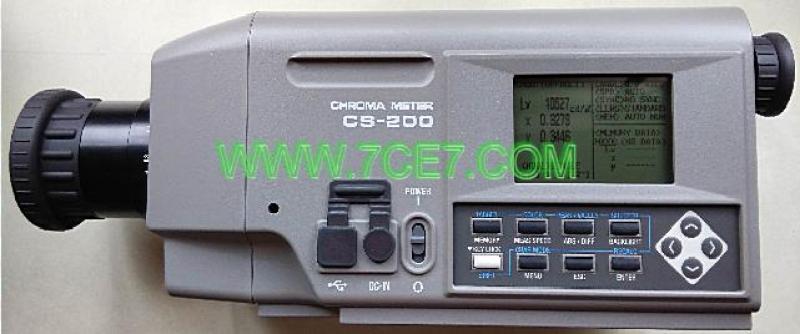

1. Chroma Meter
      2. model no. : CS-200


      3. Desc. :

      4. KONICA MINOLTA



      5. Application :

      6. Light box for advertisement, traffic light, tunnel lighting, effect of color light to animals or plants, LCD panel, LED panel, vehicle lamp, digital cinema screen, color matching for implant tooth, printing ink for aluminum can



      7. Feature :

      8. To measure light intensity with cd/m2，color with xy，color temperature with K，dominant wavelength，contain diffraction grating，wide range，accurate，easy to use，data output to PC



  • Measurement

    range:

    0.01 ~ 200,000 cd/m2 (measuring angle 1º);

    0.01 ~ 5,000,000 cd/m2 (measuring angle 0.2º);

    0.01 ~ 20,000,000 cd/m2 (measuring angle 0.1º)
    Accuracy:

    150 cd/m2 : ±2 % ±1 digit; xy : ±0.002;
    0.01 ~ 0.5 cd/m2 : ±0.02 cd/m2 ±1 digit;
    0.5 ~ 1 cd/m2 : ±0.02 cd/m2 ±1 digit; xy : ±0.007
    1 ~ 10 cd/m2 : ±2% ±1 digit; xy : ±0.004
    10 ~ 200,000 cd/m2 : ±2% ±1 digit; xy : ±0.003
    5,000 cd/m2 : color filter (R, G, B); xy : ±0.006
    (Based on measuring angle 1º, temperature is 23±2°C

    & relative humidity is 65% or less for illuminant A)
    Measurement method: Spectral method, grating + linear photo diode array
    Measuring angle: 1º, 0.2º, 0.1º (switchable)

    Minimum

    measuring area:

    Ø0.5 mm (measuring angle 0.1°);

    Ø0.1 mm (measuring angle 0.1° + close-up lens #107)
    Focusing distance: 296 mm to infinity
    Measuring function:

    Luminance : cd/m2, fL; tristimulus values : XYZ;

    color : xy, u'v'; correlated color temperature : K, Δuv;

    dominant wavelength : nm

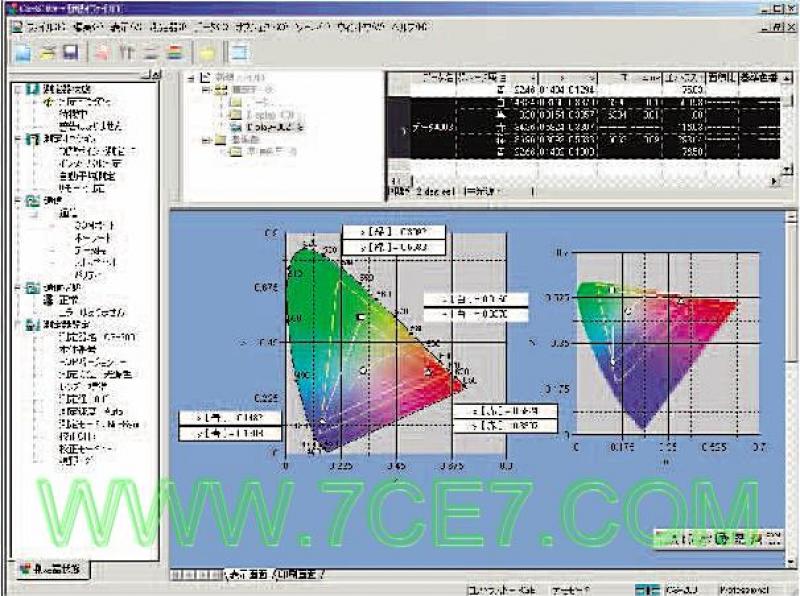

    Digital output: USB
    Power source: 4 AA-size batteries or AC adapter
    Dimensions: 95 x 127 x 334 mm
    Weight: 1800 g (without battery)
